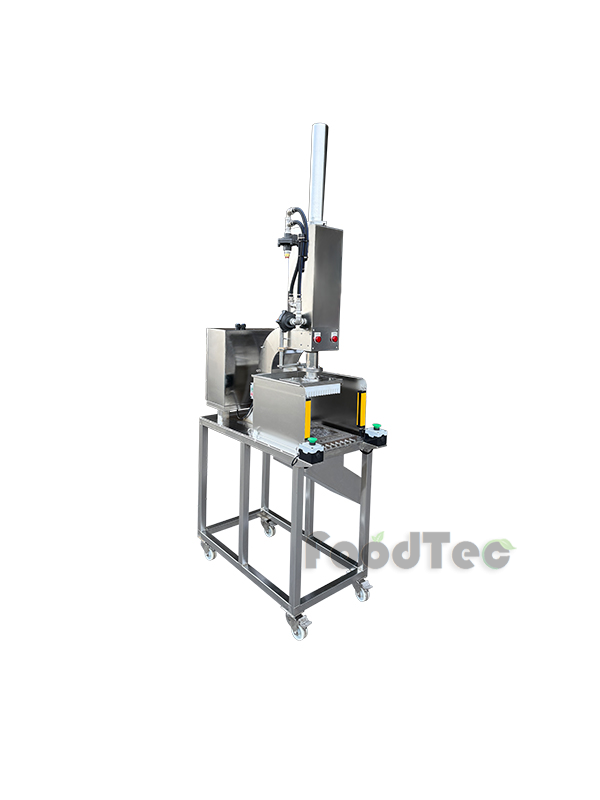

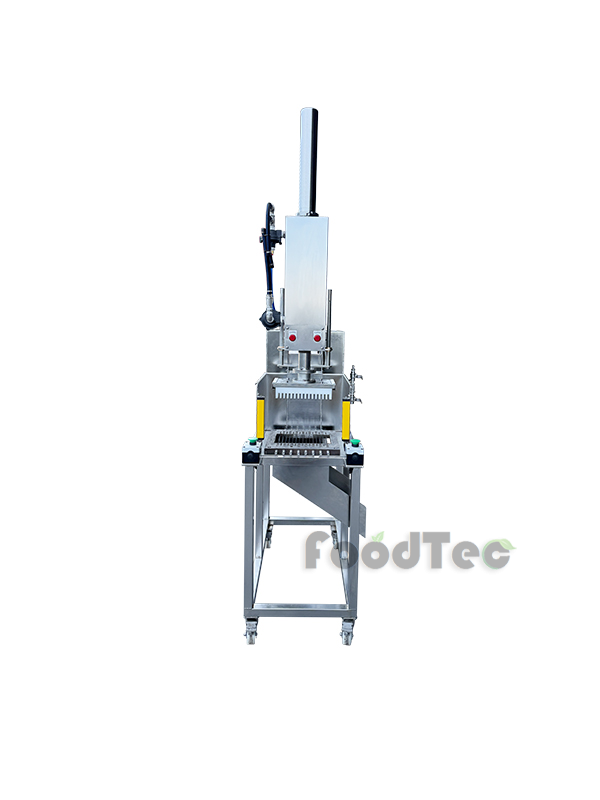

Ring and chunk cutting machine FT-501D

Ring and chunk cutting machine FT-501D

FoodTec ring and chunk cutting machine is specially designed for the cutting of ingredients such as taro, pumpkin, yam, and daikon radish. Can customize cutting widths to meet various processing specifications requirement. The capacity of the machine is: 15 cycles per minute, reaching up to 900 cycles per hour. The powerful and blade design ensures smooth and even cutting surfaces, effectively improving product freshness. For enhanced operator safety, the machine features a dual-button start system and an integrated infrared safety gate. A discharge funnel is located beneath the cutting area and can be connected to basket or inspection conveyors as needed. The blade design is simple and allows for quick and convenient installation, removal, and replacement. The cutting stroke can be raised by up to 200 mm to accommodate larger raw materials. The ring and chunk cutting machine is stainless steel with electrolytic polished to make it easy to clean and increase its durability. This machine is primarily composed of three main components:
a. Pneumatic cylinder
b. Cutting-blade holder
c. Upper cutting blade
Contact Us !
  • Is specially for the cutting of ingredients such as taro, pumpkin, yam, and daikon radish.
  • Can customize cutting widths from 10-300mm.

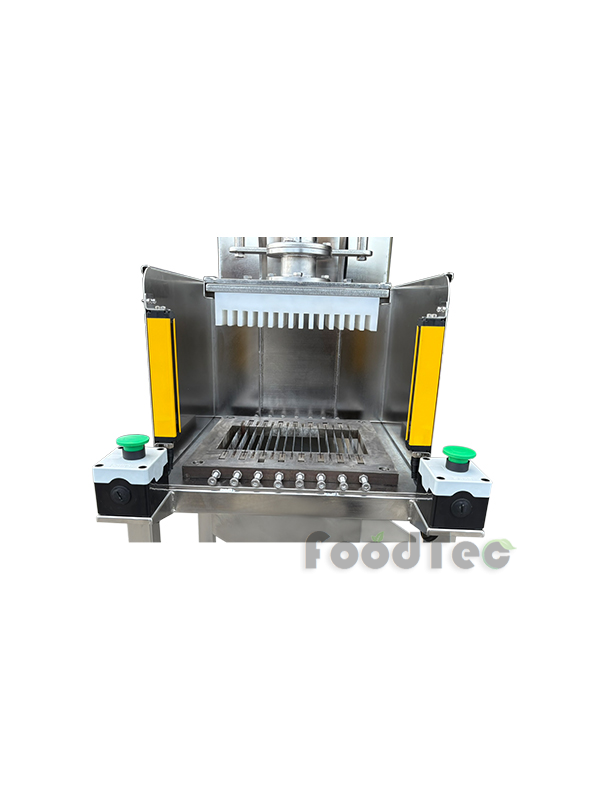

  • Have a dual-button start system and an integrated infrared safety gate.
  • A collection chute is located beneath the cutting area.
  • The blades are easy to install and remove.
  • Simple operation and a hygienic design.
  • Durable and robust also reduces labor requirements.

Dimension: L900 x W500 x H2400 mm

Remark:

  1. The owner must provide an air compressor of 0.5 m³ / min.
  2. The owner must provide a 170 liter compressed air storage tank.
